Power Cutters: Medium General Purpose Type
(3 types - MR20, MR30A, MR50F)

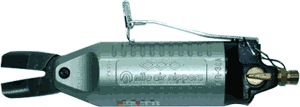

MR30A

MR30A(Blades sold separately)

MR20 : An easy-to-use medium-sized cutter with a wide range of usage including simple caulking and bending.
MR30A : The most standard type of a power cutter that can perform cutting, crimping, bending, pressing, punching, and other jobs.
MR50F : Mostly used for cutting resin. Especially effective when cutting thick materials.

Model No. Overall length
(mm)		 Weight
(g)		 Diameter
(mm)		 Air pressure
(N)
MR20 140 340 45 1372
MR30A 176 520 56 2744
MR50F 197 1170 75 4116


*Refer to the page on "Standard Blades" for the shapes of standard blades.
Model No. Blade No. Material Cutting capacity
(Diameter=mm)
MR20 S5 Copper 2.6
S5S Copper 2.6
P6 Steel 2.0
CR6 Steel 2.0
Z6 Piano wire 1.0
MR30A S7P Copper 3.3
S7PS Copper 3.3
P8P Steel 2.8
CR8P Steel 2.8
EP10P Steel 2.8
Z8P Piano wire 1.2

Model No. Blade No. Material Cutting capacity
(Diameter=mm)
MR20 F5 Soft plastics
Hard plastics		 7.0
5.0
F5S
FD5
MR30A F9P Soft plastics
Hard plastics		 10.0
6.0
F9PS
MR50F F9P Soft plastics
Hard plastics
Plastics with high temperature		 12.0
6.5
20.0
F9PS

Model No. Blade No. Crimping capacity
MR30A A8P-1.25 Non insulated connector 1.25sq
A8P-2.0 Non insulated connector 2.0sq
AR8P-1.25 Insulated connector 1.25sq
AR8P-2.0 Insulated connector 2.0sq
