Standard Blade Size Table

• The shape used for MR30A is the basic shape of a standard blade.
  Although its applicable type is the MR type, a standard blade can also be used with the MP-type, MPL-type, MOS-type, etc., and also with the machine fitting types including MS, MSK, MSF, ML, MSR, CF, and CL.

• Sizes differ slightly for blades used for lead wire, iron wire and resin in the size table.

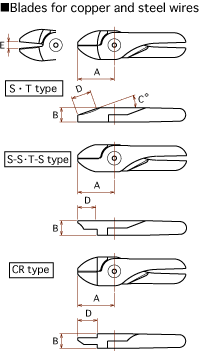

Body Blade No. Size(mm) A B C D E MR3 S20 24 7 25 10 2.3 S20S 24 7 - 12 2.4 CR20 24 7 - 11 2.4 MR5 S2 24 7 25 10 3.5 S2S 24 7 - 12 3.9 CR2 24 7 - 11 3.5 MR7 T7 27 9 25 14.5 4 T7S 27 9 - 13 3.7 CR7 26.5 9 - 10 3.4 MR10 S4 27 9 25 13 5 S4S 27 9 - 13 5 CR4 26.5 9 - 10 4.1 MR10A S5A 35 12 30 22 5 S5AS 35 12 - 17 5.5 CR6A 35 12 - 15 6 MR12 S5J 35 12 30 19 5 S5JS 35 12 - 17 4.9 CR6J 35.5 12 - 16.5 4.7 MR20 S5 35 12 30 20 7 S5S 35 12 - 17 7 CR6 35 12 - 16 8.3 MR30A S7P 43 17 30 24 7.5 S7PS 43 17 - 20 7.5 CR8P 43 17 - 21 8.5 MR50A S120 45 25 35 26 9.5 S120S 55 25 - 30 9.6 CR120 55 25 - 31.5 10

Body Blade No. Size(mm) A B C D E F MR3 Z20 24 7 25 11 2.7 - EP20 20 7 - 7 2.3 7.5 MR5 Z2 24 7 25 11 3.5 - EP2 20 7 - 7 3.1 7 MR7 ZT7 27 9 30 11 3.5 - EP7 26 9 - 9 3.2 7.5 MR10 Z4 27 9 25 10 5 - EP4 26 9 - 9 5.2 7.5 MR10A Z6A 31 12 35 15 4.5 - P6A 28 12 35 14 4.5 - EP6A 28 12 - 12 4.5 11.5 MR12 Z6J 30 12 35 15 4.9 - P6J 28 12 35 14 4 - EP6J 28 12 - 12 4.1 12 MR20 Z6 30 12 35 15 6.5 - P6 29 12 35 13 6.5 - EP6 28 12 - 12 8.9 11.5 MR30A Z8P 38 17 40 20 6.5 - P8P 37 17 25 12 7.5 - EP10P 34 17 - 17 6 11.5 MR50A Z120 40 25 35 17 7.5 - P120 40 25 35 18 8.5 - EP120 40 25 - 25 8.5 15

Body Blade No. Size(mm) A B C D E MR3 F10 24 7 15 13 3 F10S 24 7 - 13 3.1 FD10 24 7 40 10 2.8 MR5 F1 24 7 15 13 3.5 F1S 24 7 - 13 3.3 FD1 24 7 40 10 3.5 MR7 FT7 27 9 25 14 2.7 FT7S 27 9 - 13 3.7 FD7 27 9 40 12 3.4 MR10 F3 27 9 25 14 5 F3S 27 9 - 13 5 FD3 27 9 40 12 5 MR10A F5A 35 12 30 22 5 F5AS 35 12 - 17 5.5 FD5A 35 12 40 15 5 MR12 F5J 35 12 30 19 5 F5JS 35 12 - 17 4.8 FD5J 35 12 40 14 5 MR20 F5 35 12 15 19 9 F5S 35 12 - 16 9 FD5 35 12 40 14 9 MR30A F9P 66 17 15 38 15.5 F9PS 65 17 - 37 16 FD9P 59 17 30 37 14.5 MR50F F9P 66 17 15 38 27.5 F9PS 65 17 - 37 27.5 FD9P 59 17 30 37 27.5 MR50A F120 53 25 30 35 12.5
